Gear Up for Precision: Benro GD3WH Geared Head Review

I've been a fan of Benro for quite some time. This Chinese company has been operating since 1996 and has produced some of the best tripods for photographers , best carbon tripods , best tripods for videographers, and best travel tripods Throughout my experience, naturally, an exceptional tripod kit holds equal importance when it comes to both the head and the legs, with Benro offering several high-quality options. Recently, I've found myself quite taken with their range, especially the Benro Cyanbird Carbon Tripod featuring FS30 Head , which functions exceptionally well as a travel tripod for capturing both photos and videos, and I'm also quite fond of its high versatility. Benro FS20PRO Tripod Head for Video and Photography .

In both cases, though, these ball heads can be less than ideal when you need to make ultra-fine adjustments. Typical scenarios include landscape photography where you want to keep the horizon absolutely level, architectural photography where you want the walls of buildings to be perfectly vertical, and close-up shooting where tiny positional changes can make a big difference. That’s where this geared head comes in, with its micrometric adjustments for all three axes of movement.

Benro GD3WH Geared Head: Key Features

Benro GD3WH Geared Head: Cost

In order to compare, Manfrotto is among the leading brands for tripods and support systems, and indeed, they offer a series of geared heads. Personally, I have been quite impressed with them. The Manfrotto 410 Junior Geared Head , priced at $299 / £285 / AU$575. I'm not entirely as smitten with the The Manfrotto XPRO geared three-way tripod head , which is crafted from technopolymer (another term for plastic) and retains a price tag of $249 / £179 / AU$476.

The Benro GD3WH Geared Head has a retail price of $225 / £220; however, it frequently goes on sale. As of when this review was written, it could typically be found for about $175 / £169, with some searching potentially revealing even better deals. Given its high-quality construction and superior materials, this represents good value for money. Additionally, Benro offers the GDHAD1 tripod spacer priced at only $32 / £21, an accessory worth considering as well. I will discuss this further down.

Benro GD3WH Geared Head: Design and Operation

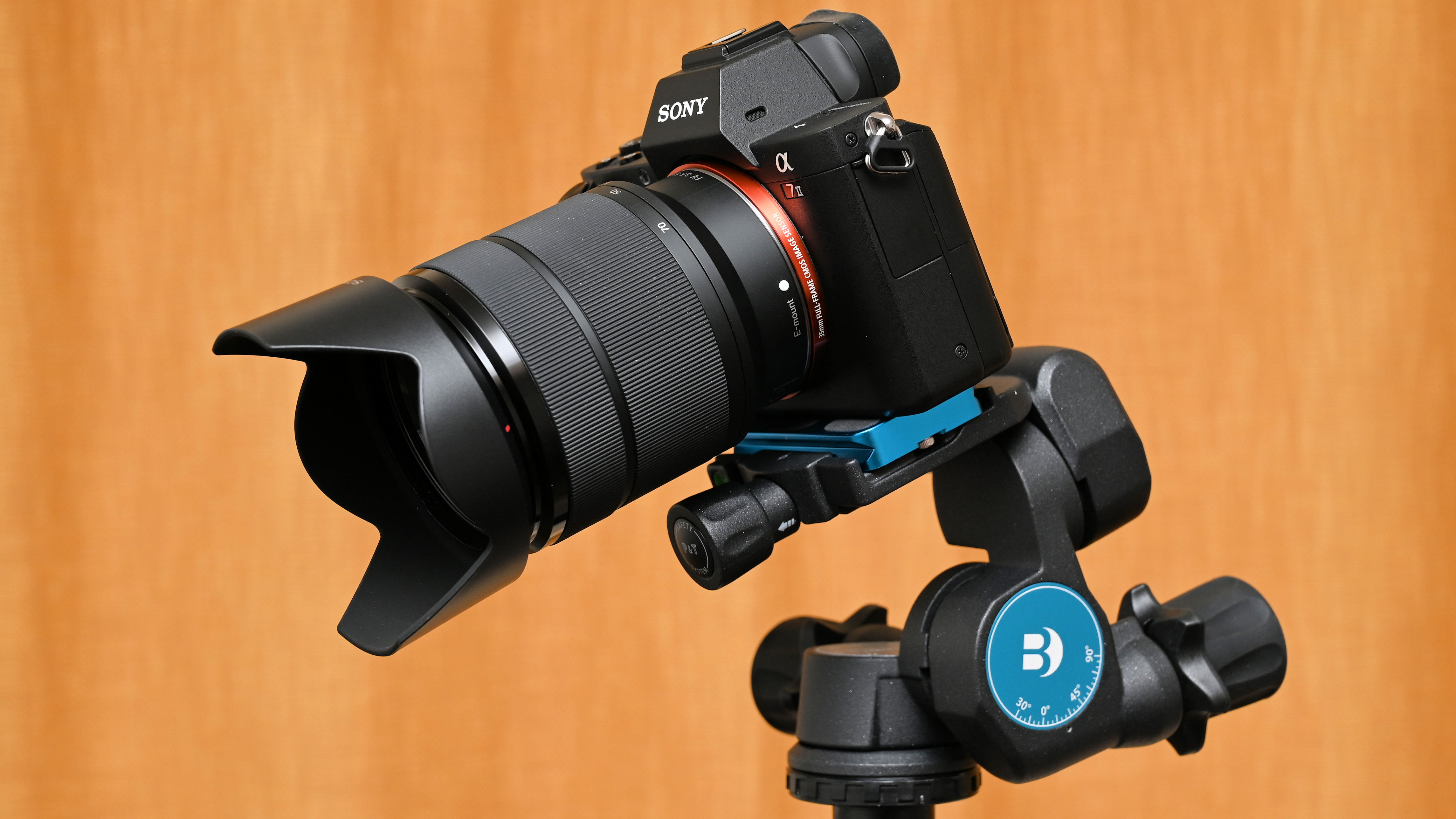

The design features a traditional 3-way geared head. The Benro rests on a 52mm / 2.05-inch round platform equipped with a 3/8” screw thread for mounting onto a tripod. Positioned above this base are two control knobs situated at right angles from one another yet aligned horizontally. One knob adjusts pan movement, offering a complete 360-degree turn, whereas the other controls front-to-back tilt within an angle range of -90 degrees (useful for looking directly down) up to +30 degrees towards the sky. You have the flexibility to switch between these tilt limits merely by flipping the quick-release plate upside-down through half a revolution.

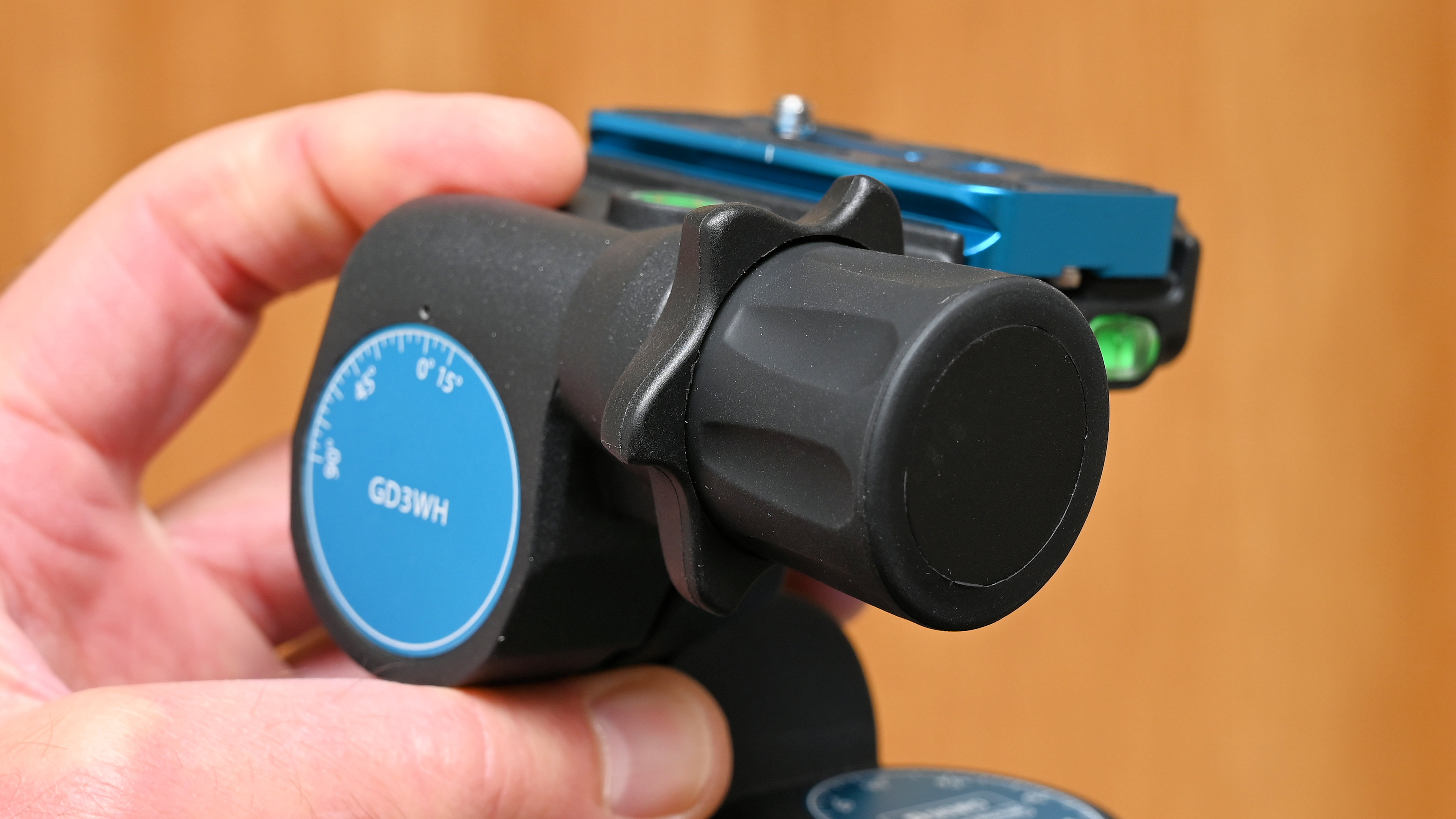

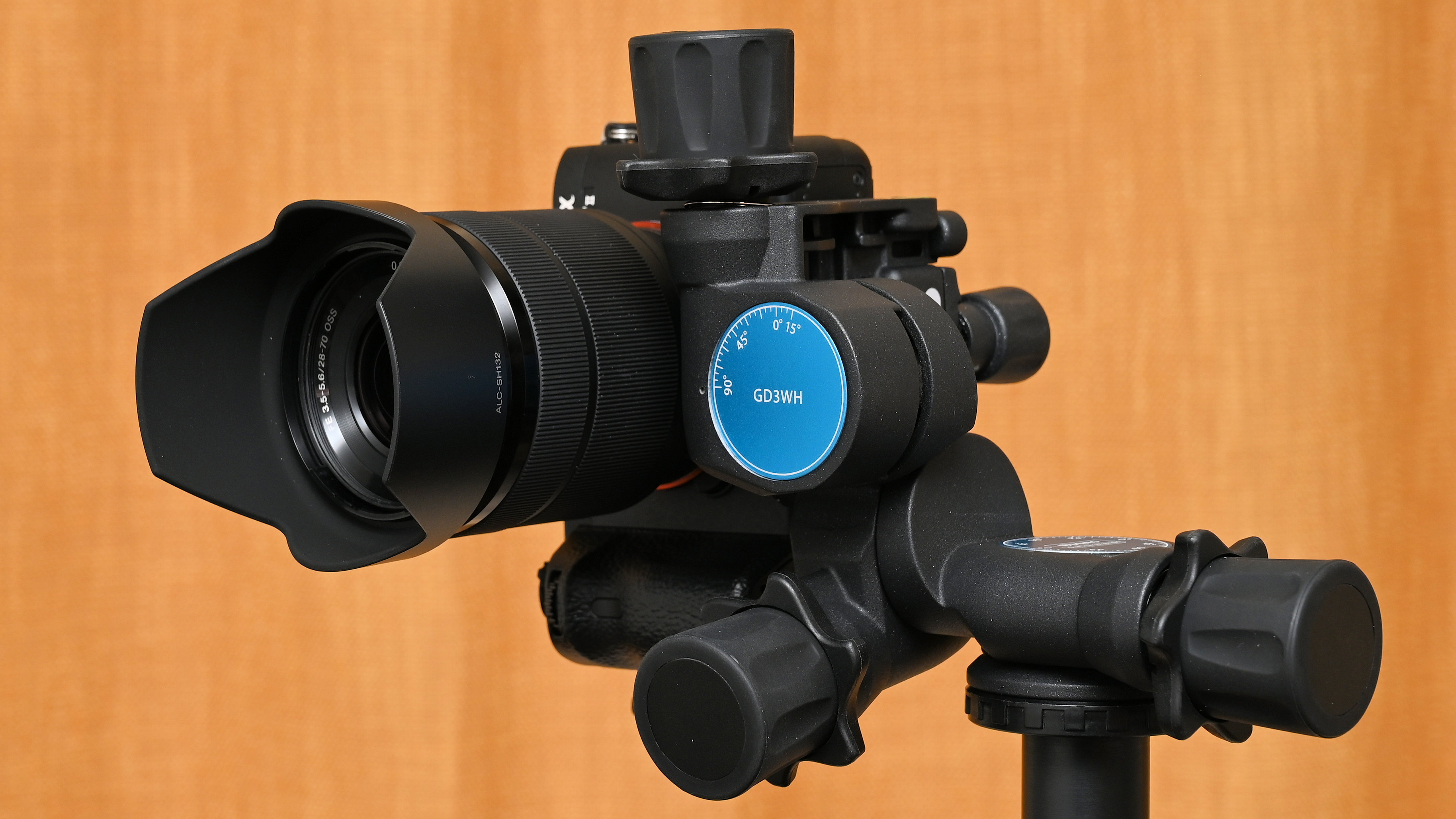

Higher up, at nearly the same elevation as the camera platform, lies the third control knob. This particular knob adjusts side-to-side movement. Similar to the others, it features a marked scale, which spans from 90 degrees to the left down to merely 15 degrees to the right. Some may find these limits somewhat restrictive, particularly those who favor angling their cameras to the right for vertical shots, thus reducing the risk of them coming loose on the QR plate. Nonetheless, an alternative approach would be to flip the quick-release plate within its holder to switch the extremes of horizontal adjustment in both directions.

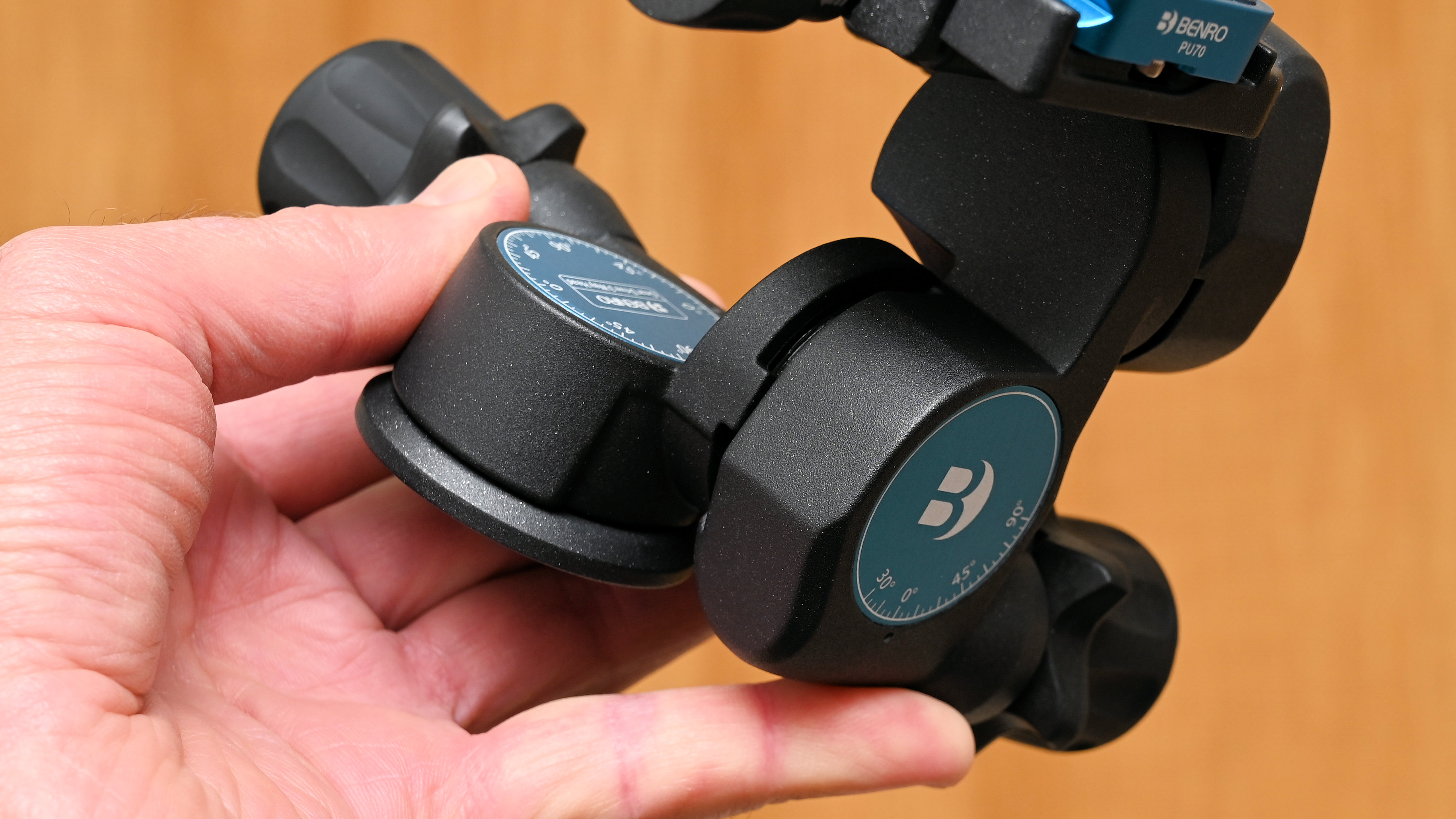

The gearing on all three knobs is sufficiently low, allowing for extremely delicate and accurate modifications across all three axes. However, this also means significant changes require an eternity—or nearly so—unless you utilise the alternate adjustment technique. You can bypass each knob’s gear system entirely by rotating the corresponding coarse adjustment dial, which releases the mechanism from its drive and permits unrestricted motion throughout the full range. Once you have roughly aligned everything, releasing the spring-loaded dial lets you revert to making finer tweaks with the knob itself.

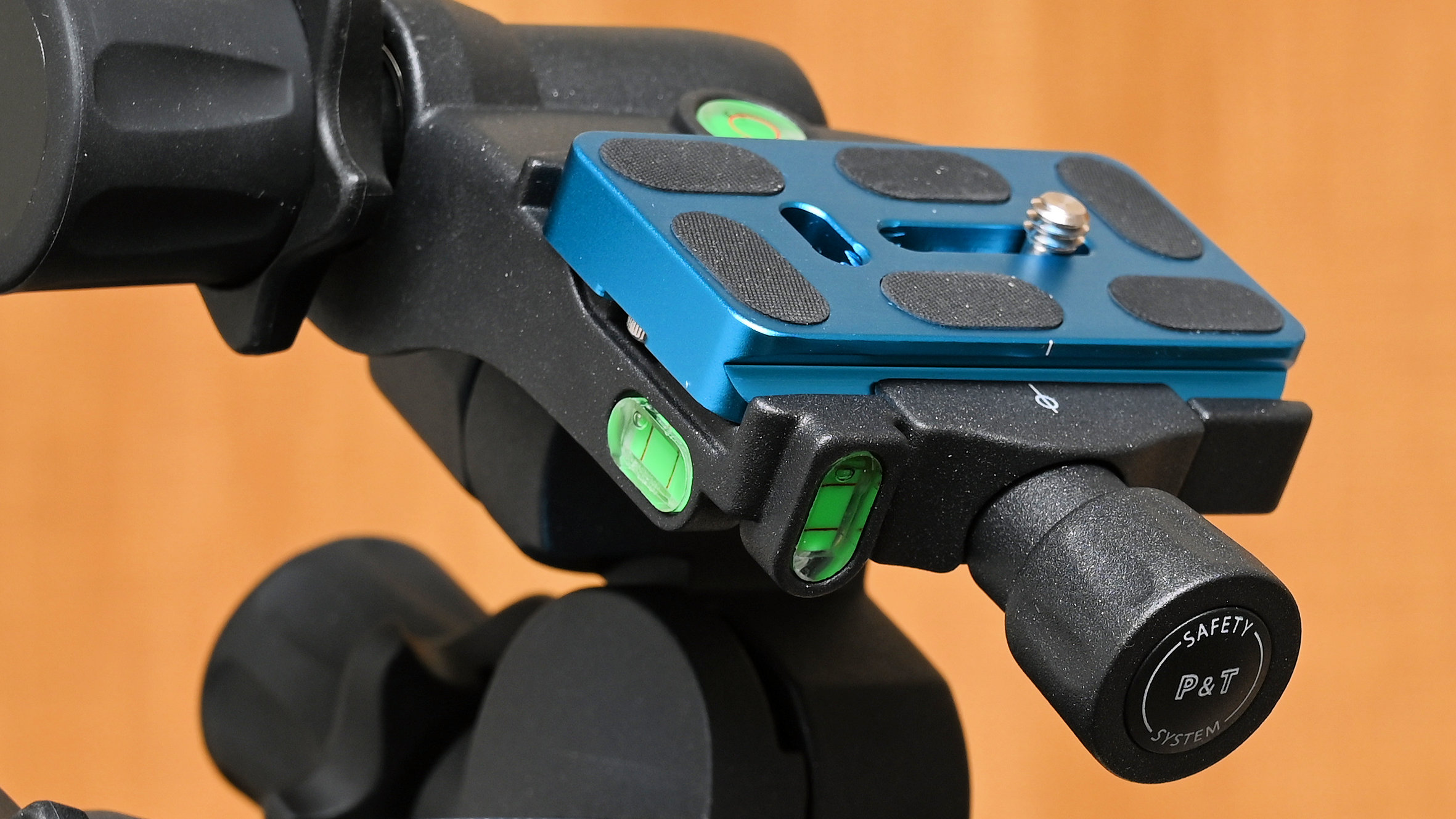

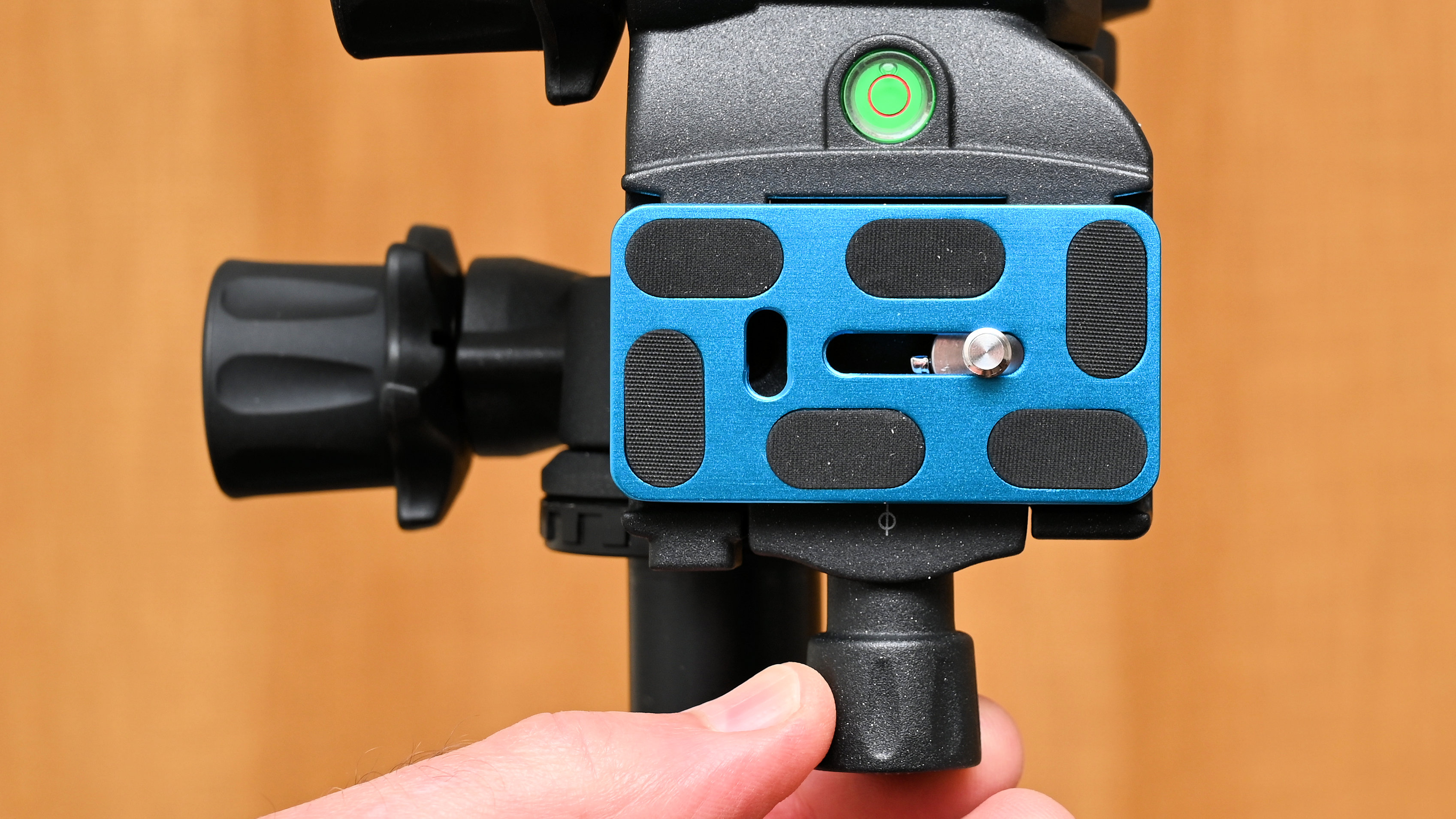

Once more upwards, the camera platform features an extended cradle designed for its Arca-Swiss style quick-release plate. This setup ensures exceptional stability since security pins prevent the QR plate from slipping out horizontally should the tightening knob be inadvertently released. For detachment, you must manually tug the knob rearward and continue rotating after reaching the protective setting.

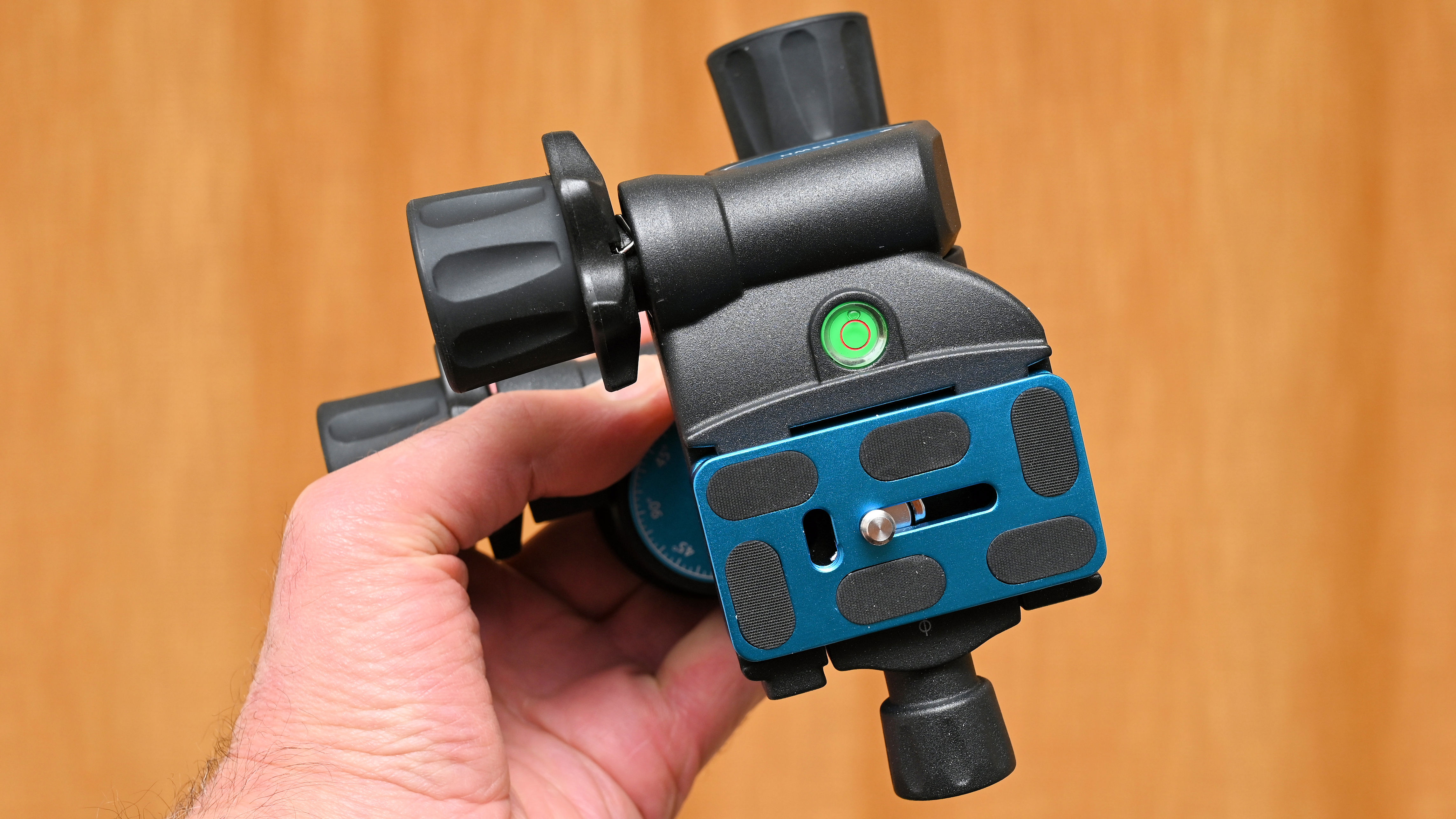

For facilitating levelling along any plane, the head includes a prominent bubble level situated atop its camera platform. Additionally, two smaller spirit levels are positioned, one on each side of the head.

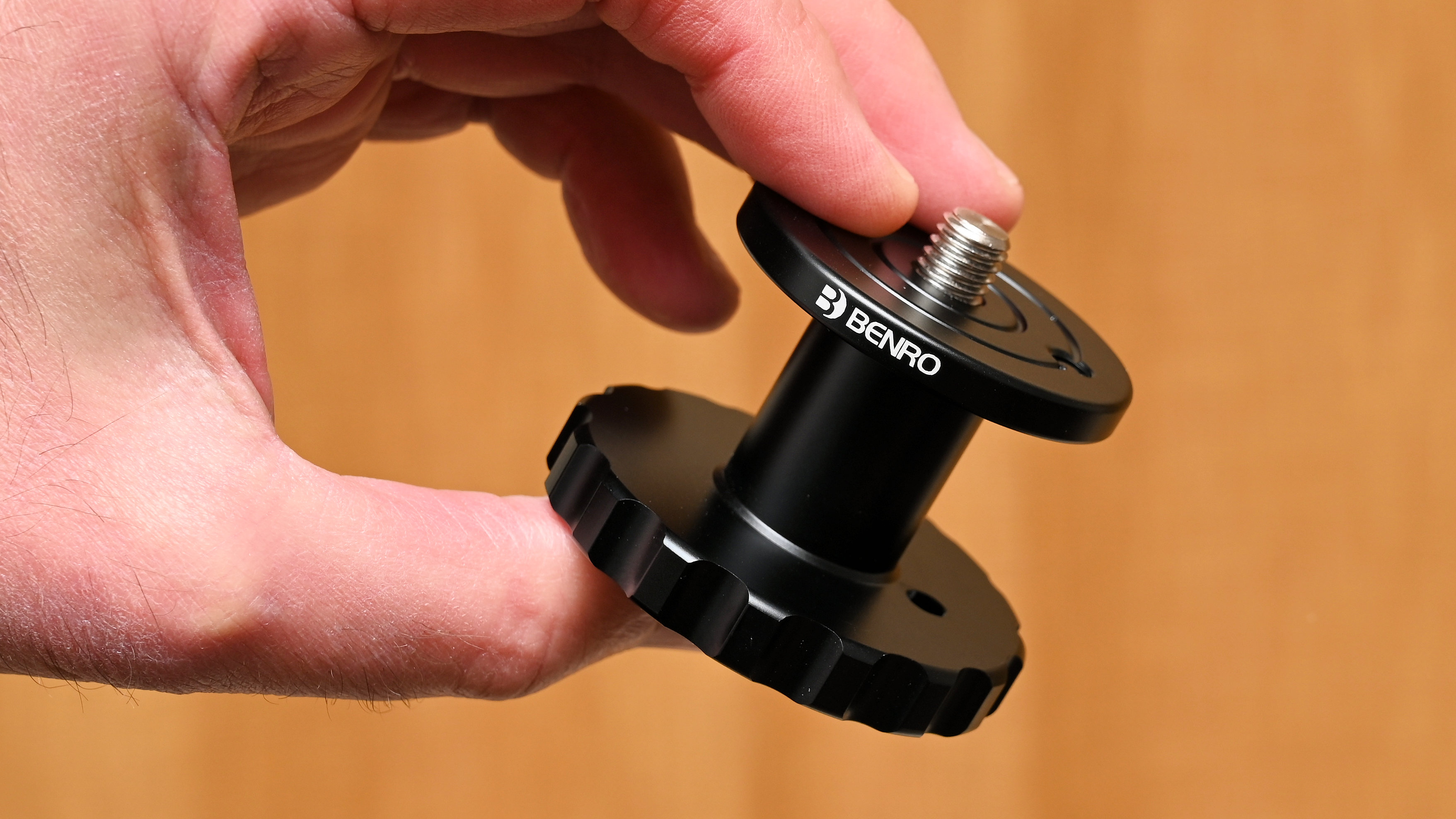

A specific issue that the Benro has in common with other geared heads occurs when your tripod lacks an extendable center column. If you attempt to apply considerable tilt in either direction, the control knobs might interfere with the tripod spider—the part that joins the legs together. To address this, Benro provides a GDHAD1 tripod extender as an additional purchase option at $32 / £21. This piece is crafted from robust metal and exhibits excellent manufacturing quality; thus, it represents good value for money.

Benro GD3WH Geared Head: Efficiency

The concept behind a geared head for achieving extremely accurate adjustments is based on ensuring these adjustments remain truly precise. Precision can easily be compromised if the head does not maintain its position steadfastly after adjustment. Some geared heads I have tested lack rigidity; they often shift slightly due to the camera’s weight and exhibit inadequate resistance against bending and vibrations. However, I am pleased to report that the Benro stands out with exceptional stability and solidity during operation.

A further point of consideration might be that, to establish a solid foundation essentially, the adjustment controls require considerable force to operate, making them somewhat difficult to turn. However, the Benro excels in this aspect. This is due to its use of high-quality components and construction. The primary structure of the head is crafted from magnesium alloy, whereas the movable elements are manufactured using carbon steel and bronze. These materials contribute significantly to ensuring both durability and seamless functioning over time.

Benro GD3WH Geared Head: Conclusion

Whenever precision matters most and I require impeccable camera positioning, I rely confidently on the Benro GD3WH Geared Head to perform flawlessly each time. Its combination of broad and detailed adjustment options across three rotational movements allows me to swiftly achieve precise camera placements with ease. Moreover, once set, it remains steadfast thanks to its robust resistance against unintended bending, drooping, and shaking. In summary, it’s an exceptionally thoughtfully crafted piece of equipment that excels both in construction quality and aesthetic appeal, making it outstandingly good value for investment.

Alternatives

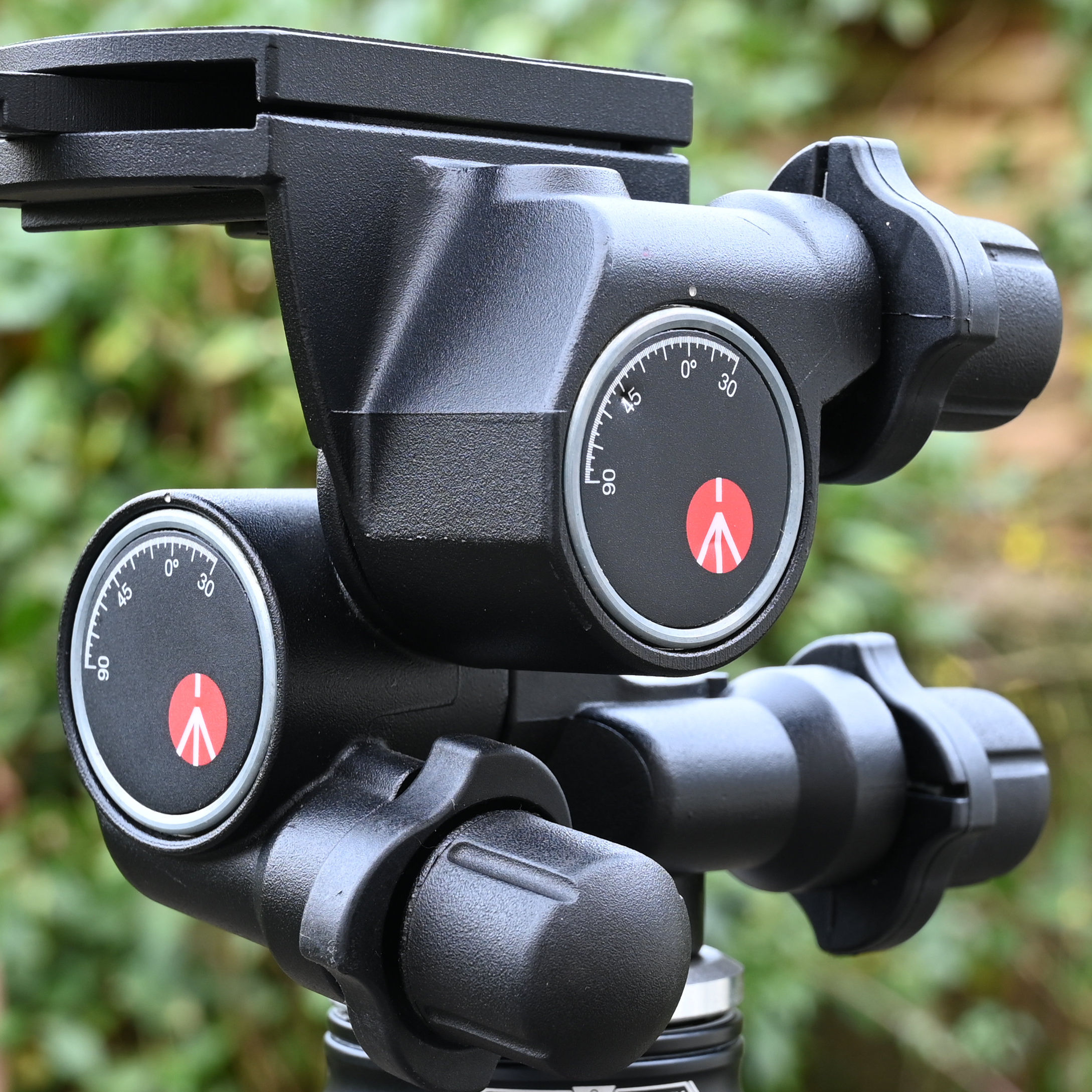

The The Manfrotte 410 Junior geared head It’s a widely-used geared head produced by the renowned Italian tripod maker. This model boasts robust construction and offers extensive mobility, featuring a rather traditional design. Its price tag sits at approximately $299 / £285 / AU$575.

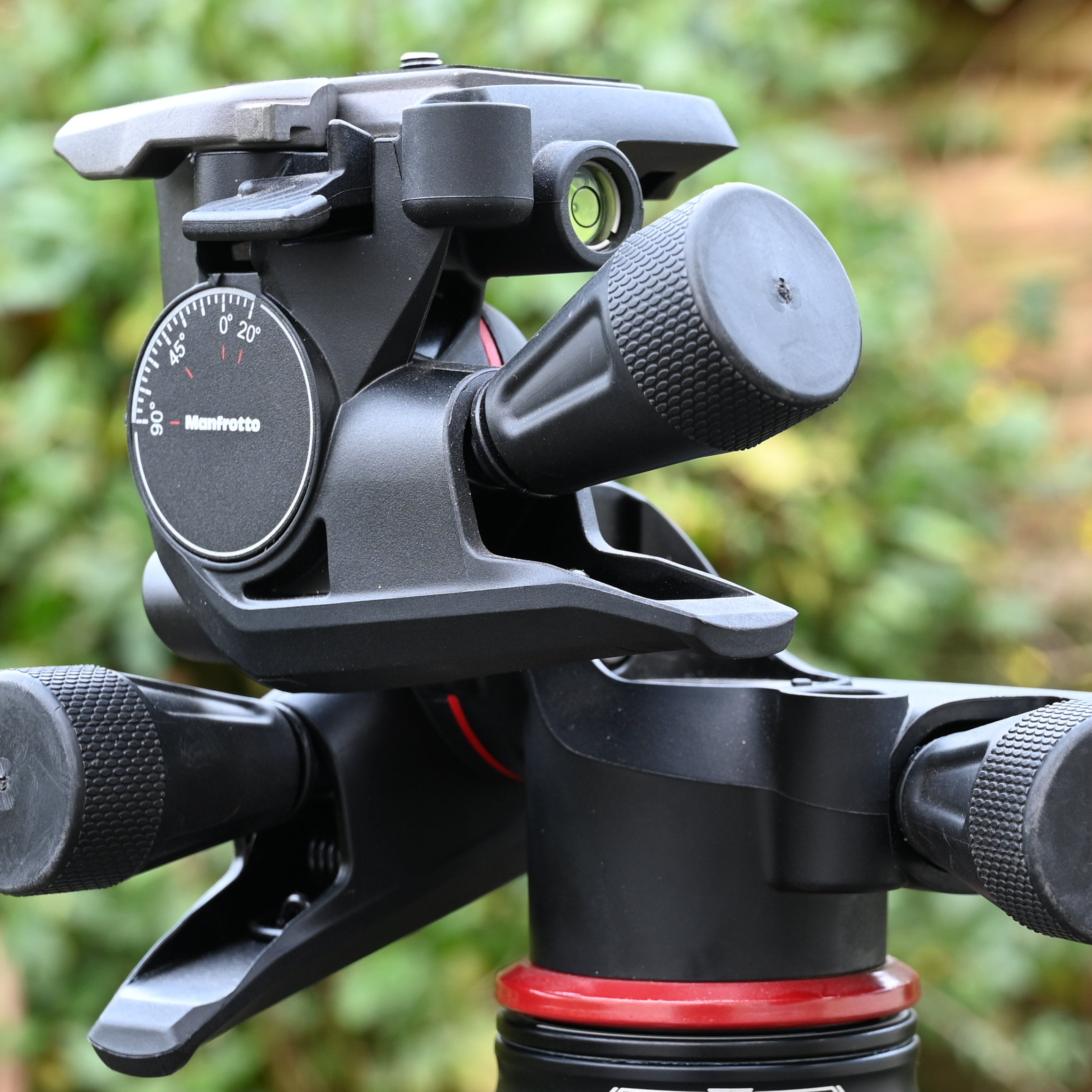

The The Manfrotto XPRO gear-driven three-way head It is slightly less robust compared to numerous rivals since it is constructed from 'technopolymer' (a premium type of plastic) instead of metal. Despite this, it remains quite pricey at approximately $249 / £179 / AU$476.
